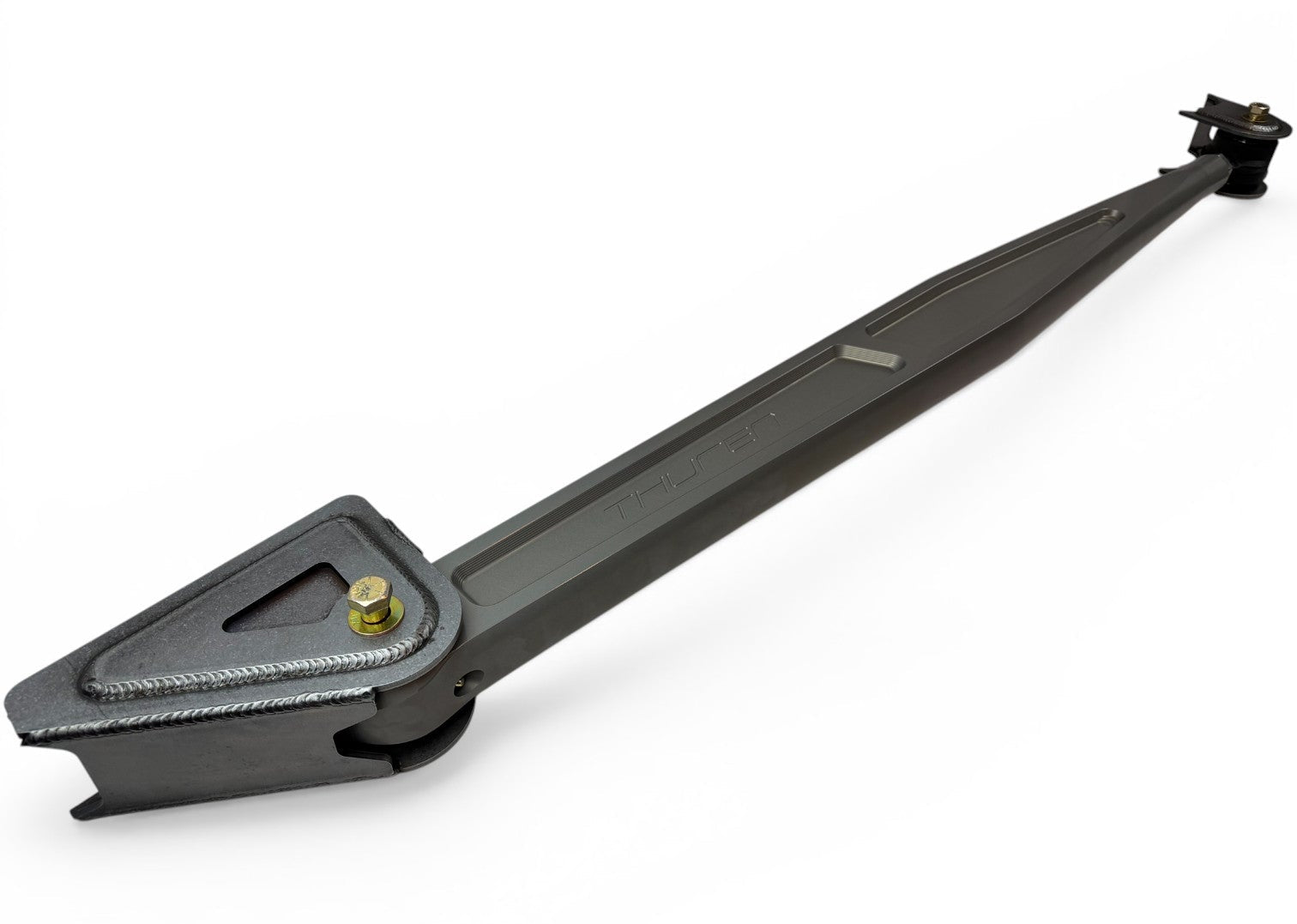

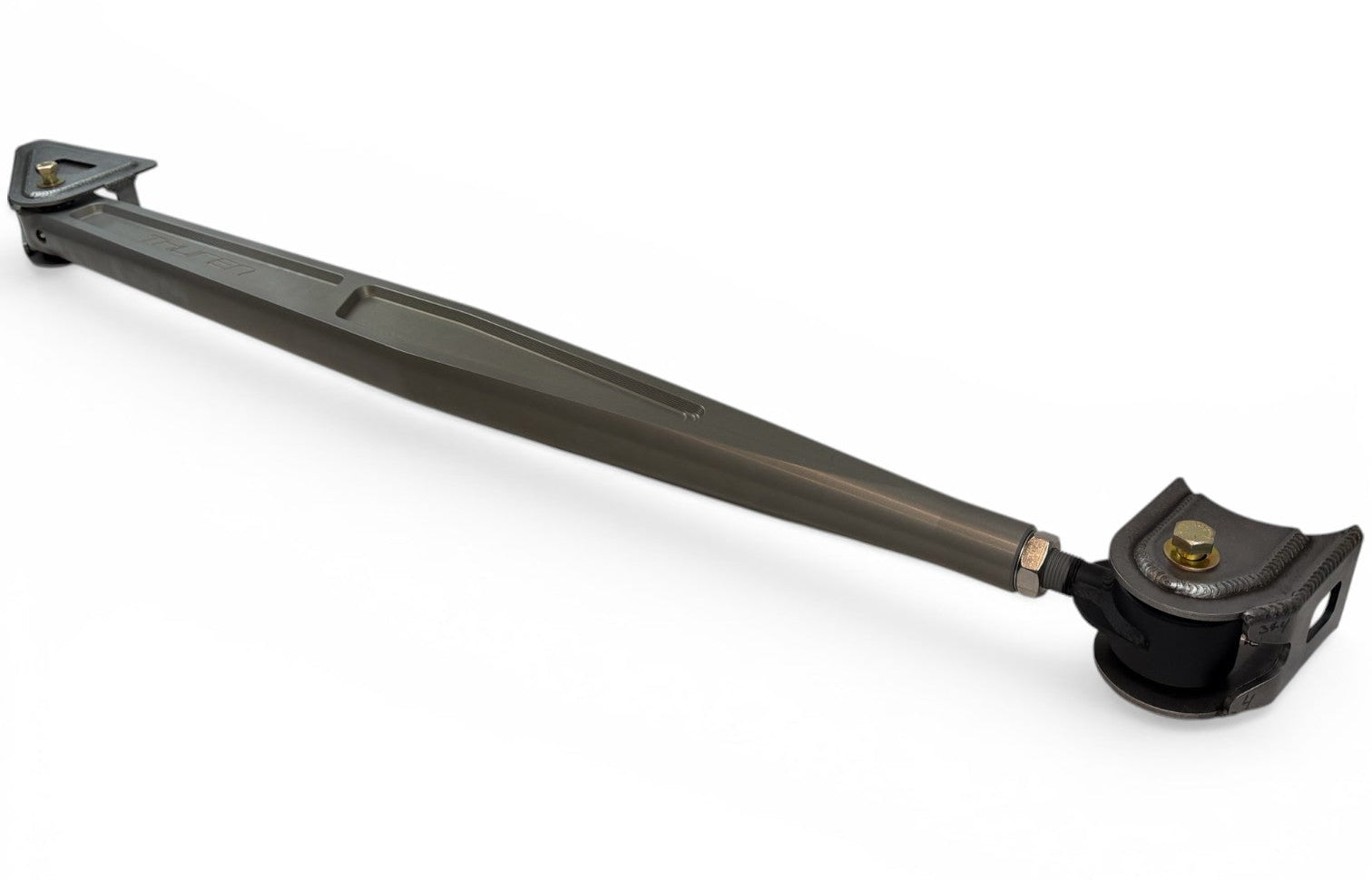

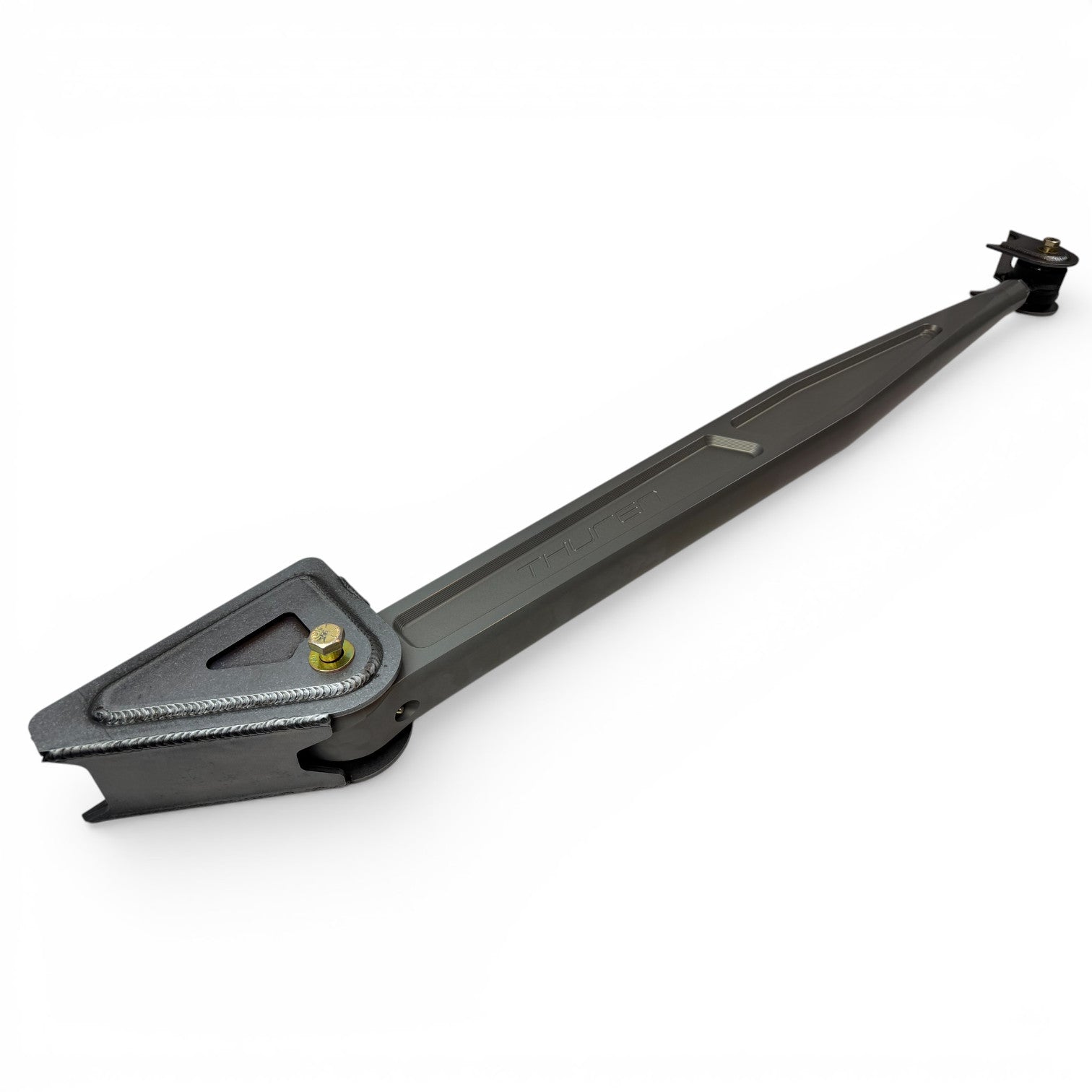

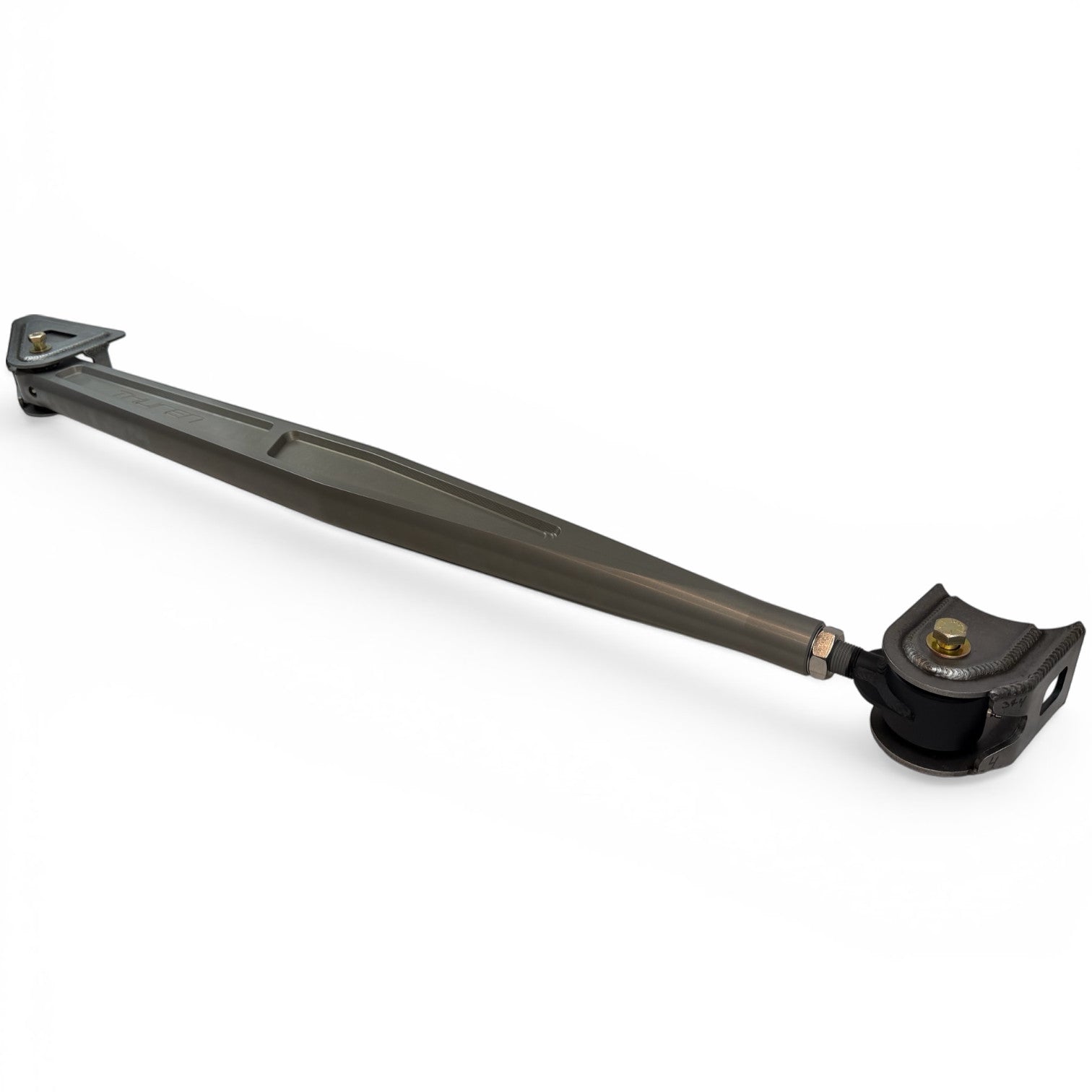

2003-2013 Ram 2500 / 3500 Rear Traction Bar Kit

Fitment:

• 2003-2013 Ram 2500 4x4
• 2003-2012 Ram 3500 4x4
• 2003-2013 Ram Power Wagon

Details:

• Almost completely eliminates axle wrap shudder under hard acceleration and in low traction conditions

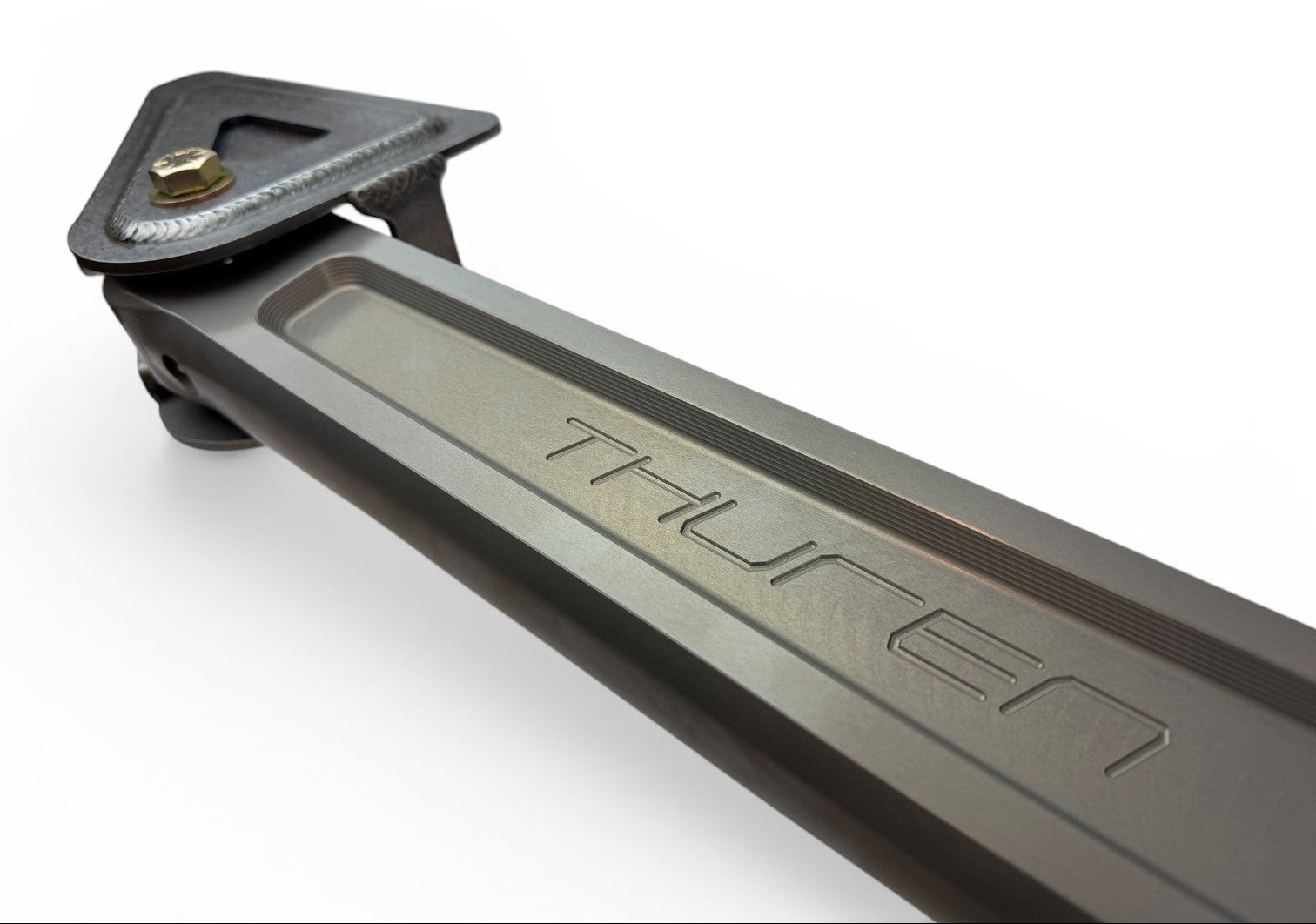

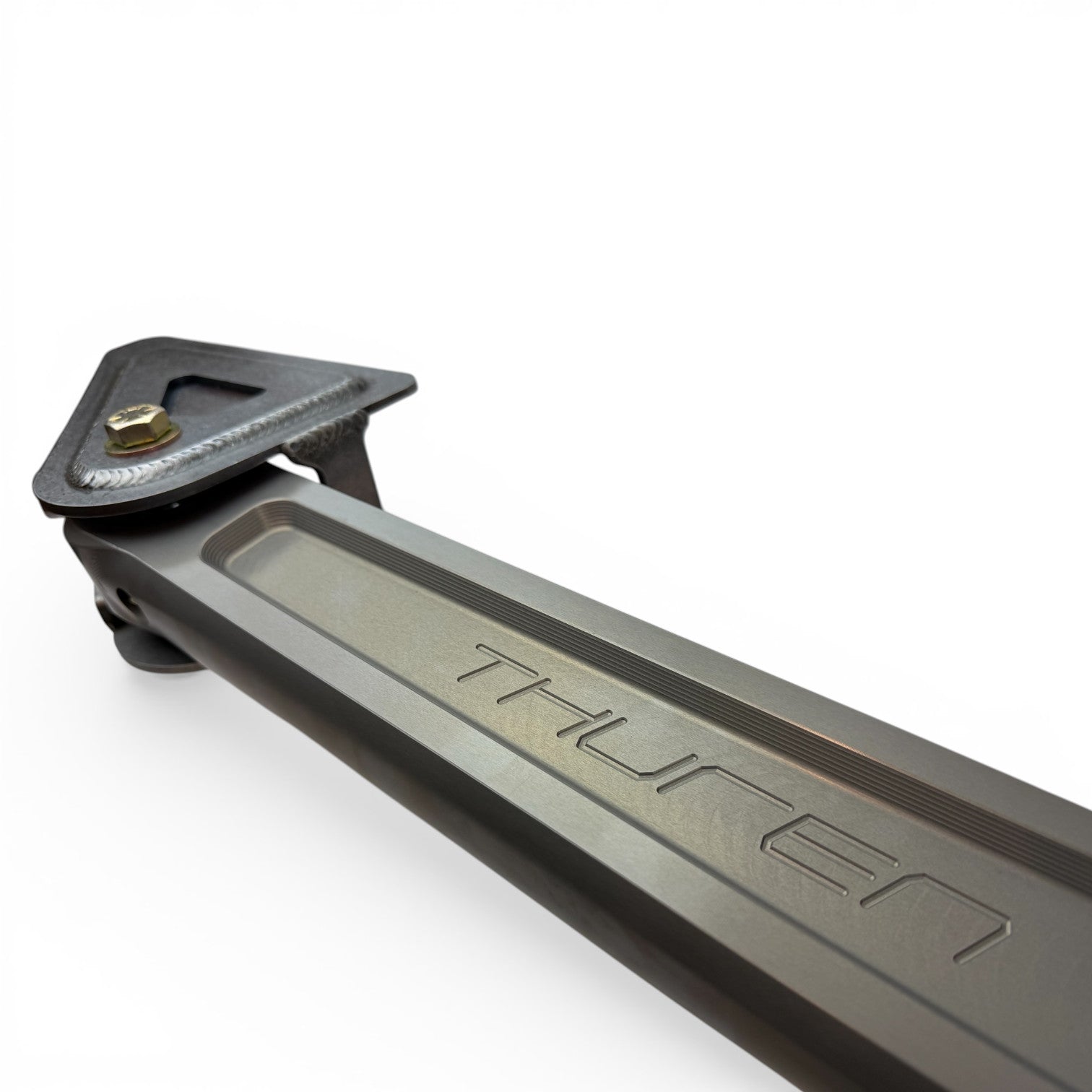

• CNC machined in-house from solid billet 6061 aluminum

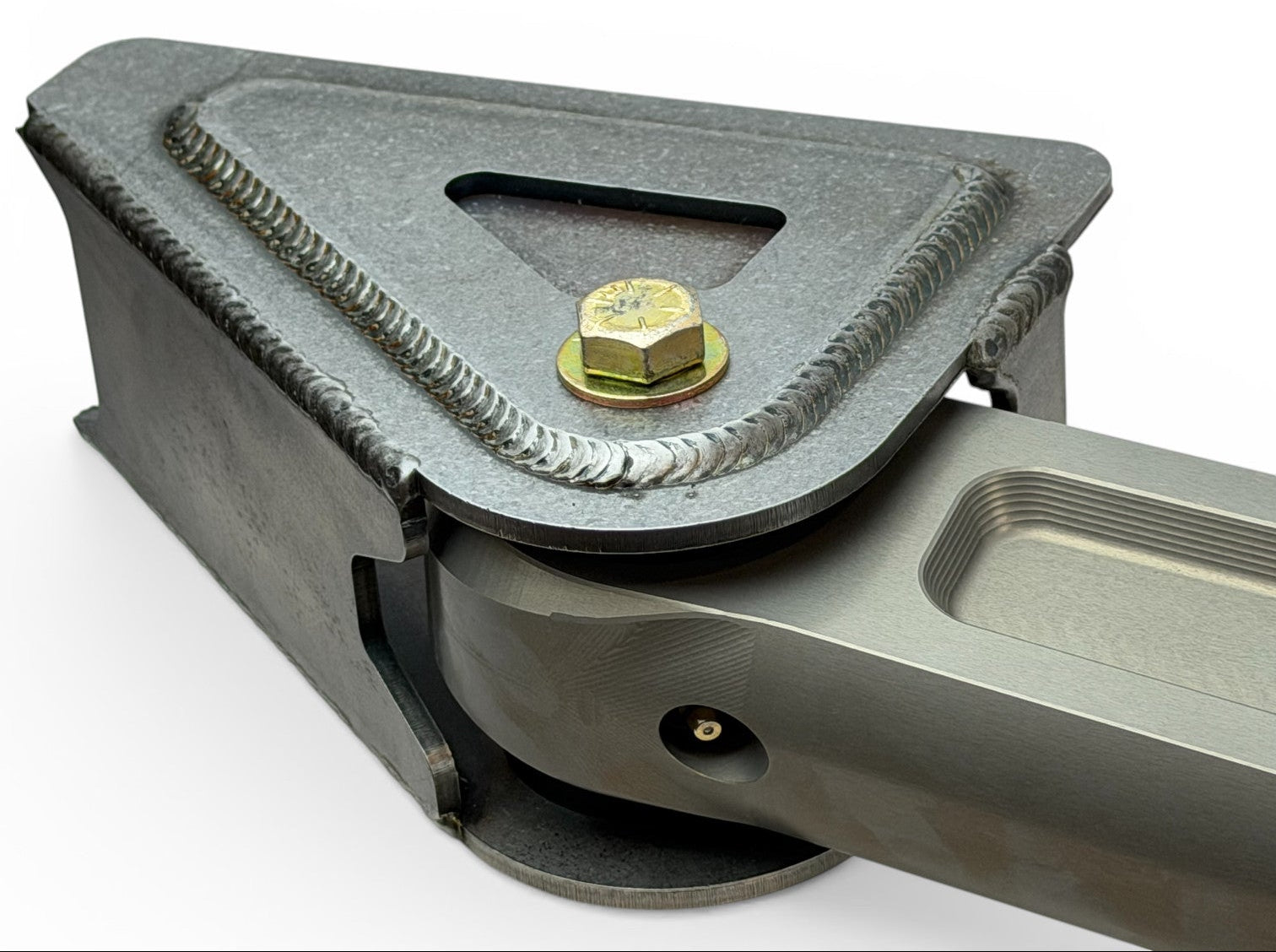

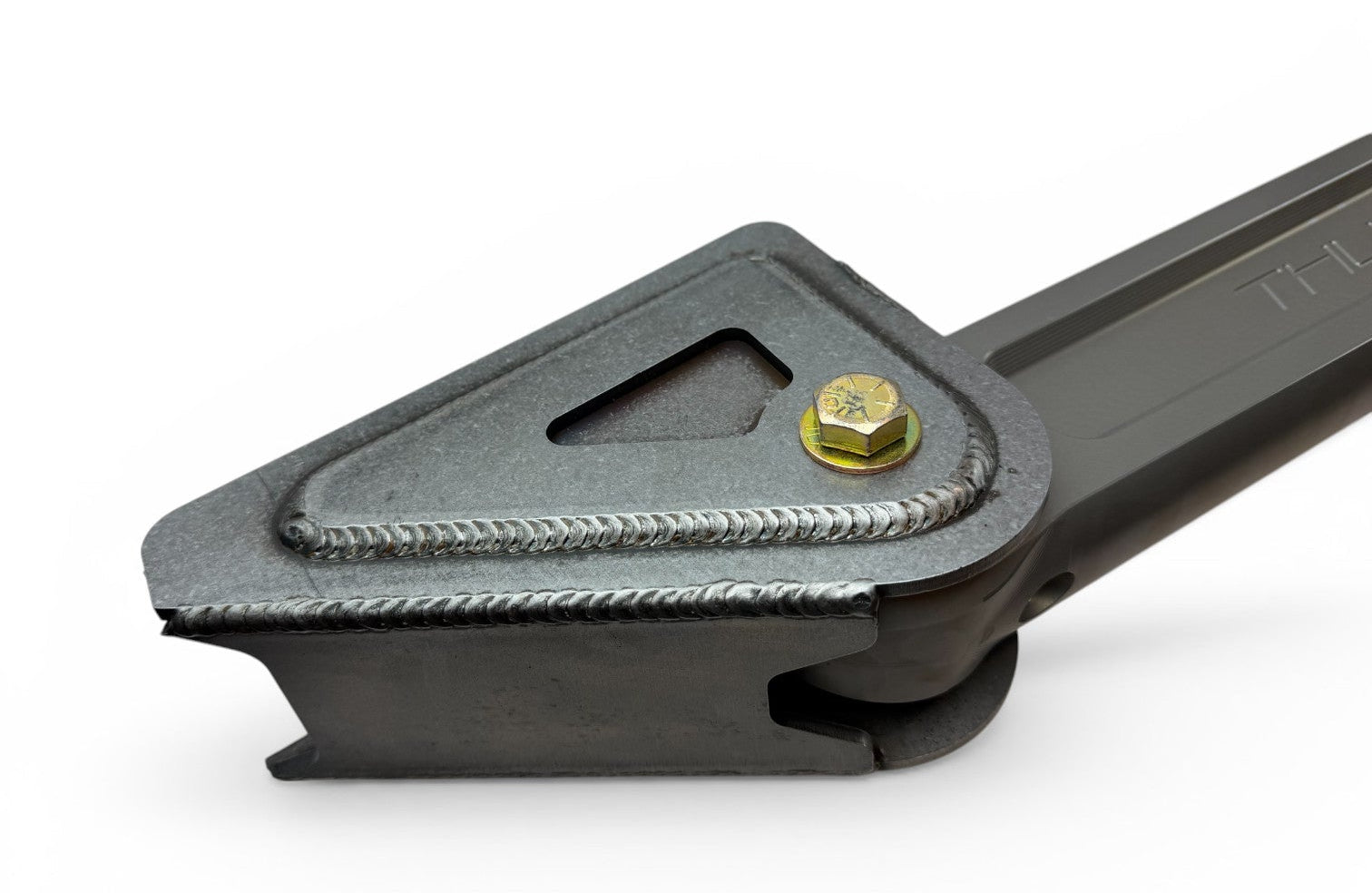

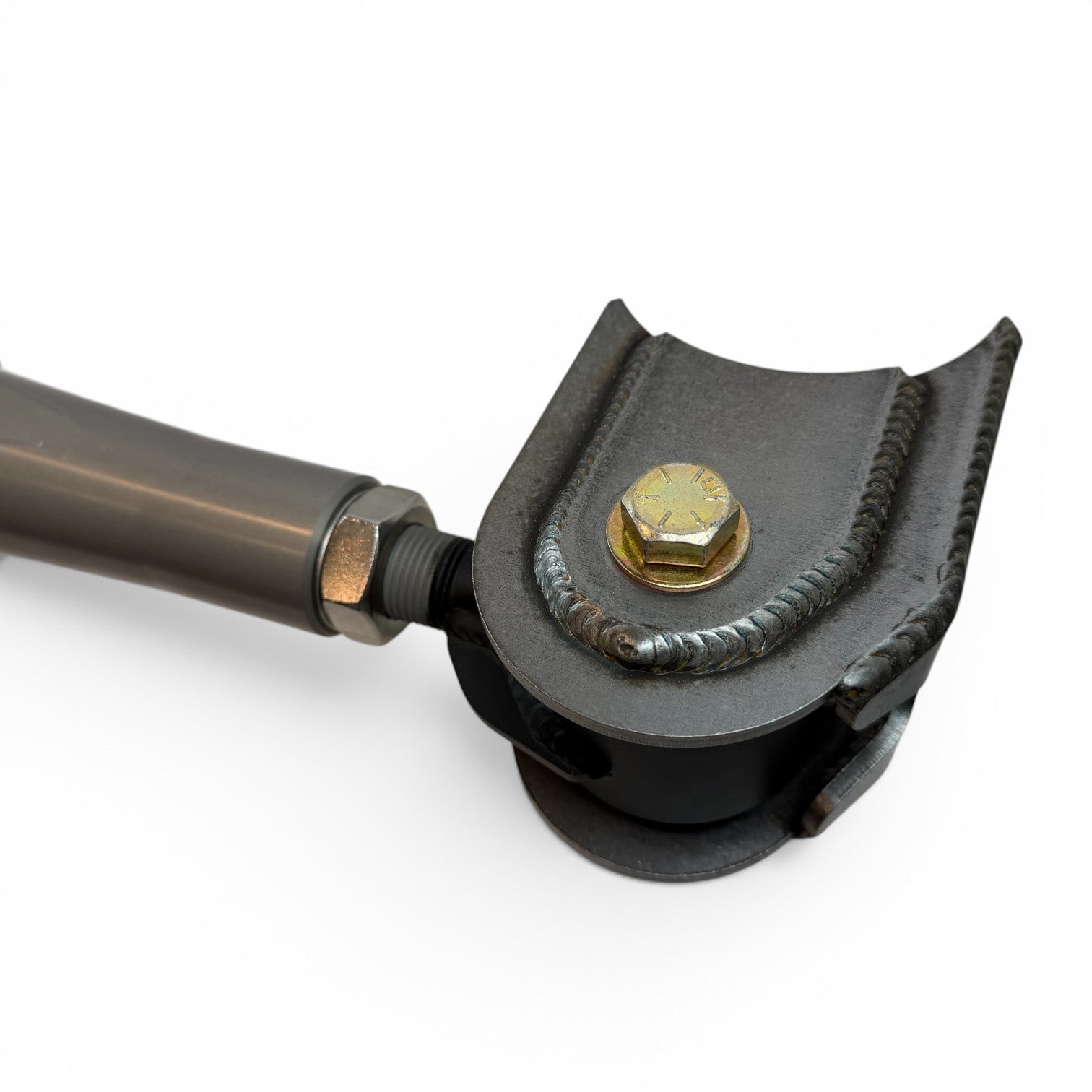

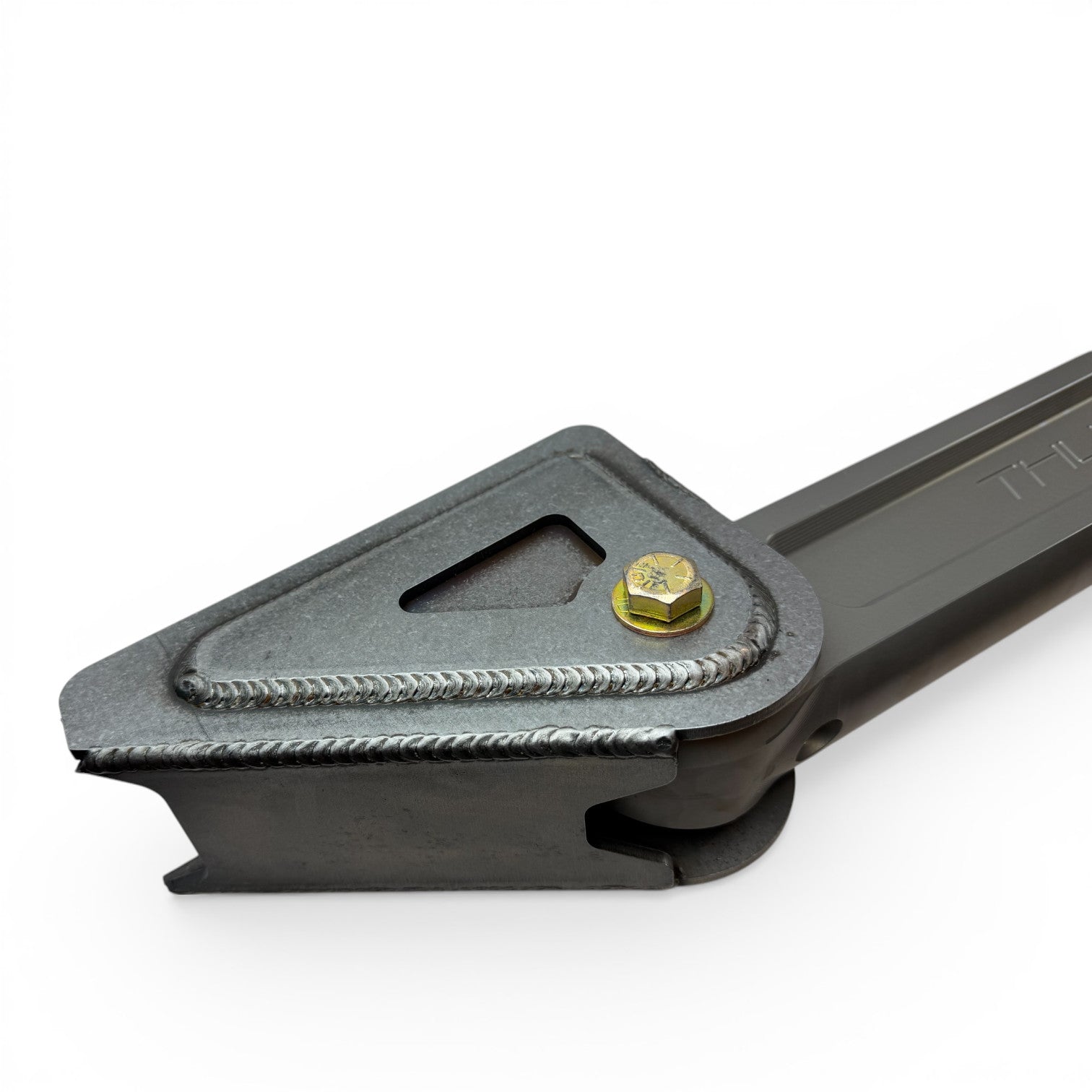

• Weld-on 3/16" steel brackets at both the axle tube and frame

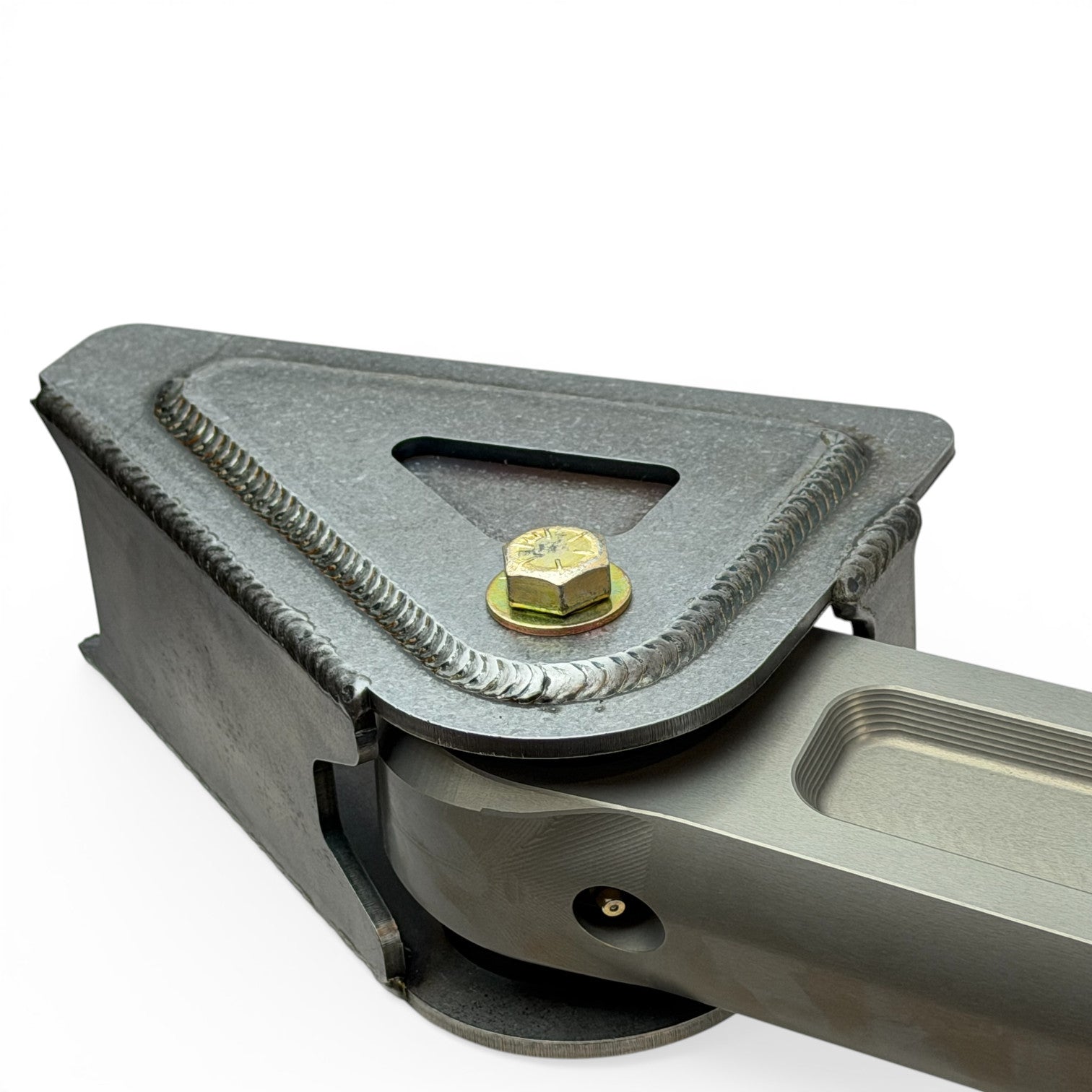

• 17-4 Stainless Steel center ball joints with polyurethane bushing races
• Grease zerk fittings on each end for easy maintenance
• Anodized finish for corrosion resistance
• No loss of suspension travel. Full 18" cycle retained with Thuren Leaf Springs
• Sold as a pair. Driver and Passenger side included

If you've ever felt that violent shudder under hard acceleration in sand, snow, or soft terrain, you know what axle wrap is doing to your truck. The factory leaf spring setup on these trucks allows the axle housing to rotate under drive load, storing and releasing energy as a harsh, uncontrolled shudder the moment the tire breaks traction. It's hard on your drivetrain, hard on your leafs, and it kills forward momentum.

Our Traction Bar Kit fixes this by controlling axle rotation and keeping the pinion angle stable under load. Each bar is machined from a solid piece of 6061 aluminum in house.

The 17-4 Stainless Steel center ball joints with polyurethane bushing races give you a joint that moves freely through the suspension cycle without binding, while still being tight enough to keep the axle exactly where it should be.

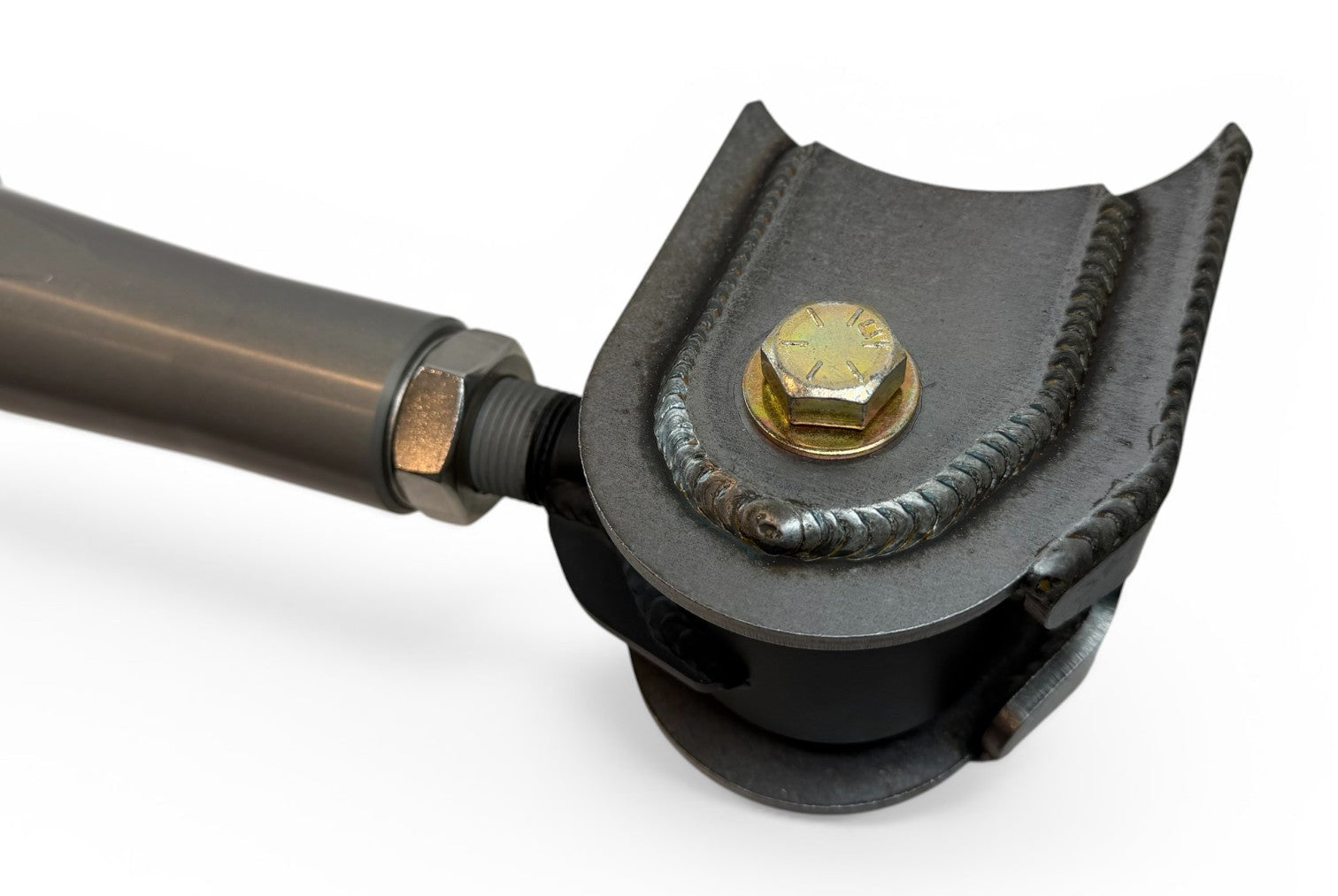

Axle-side brackets are specific to 3.5" or 4.0" axle tubes. Please measure your axle to be sure, as certain year trucks could be optioned with either. A competent fabricator or welder can have this kit fully installed without any drilling, cutting, or custom fab work beyond the welds themselves.

Notes:

• Compatible with OEM leaf springs and Thuren Leaf Springs up to 2" of rear lift.

Included:

• Traction Bar (x2)
• Axle Brackets (x2)
• Frame Brackets (x2)
• Applicable Hardware

---
